Fabrication Concepts, Inc.

CAPABILITIES OF FABRICATION CONCEPTS

LASER CUTTING

Trumpf 3200 Watt - 60" x 120"
Up to 3/4" Thick Steel, 3/8" Stainless Steel, 1/4" Aluminum

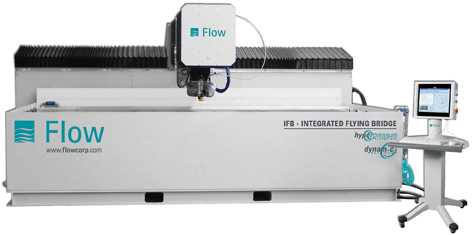

DYNAMIC WATERJET CUTTING

Dynamic Waterjet with Active Tolerance Control produces more accurate parts at significantly higher cutting speeds than parts cut with a conventional waterjet. This patented system utilizes an advanced motion system that incorporates unique mathematical cutting models, which control a small, articulated wrist that is attached to the cutting head. The wrist allows the cutting head to tilt in any direction, compensating for the stream lag and taper experienced with conventional waterjet cutting machines.

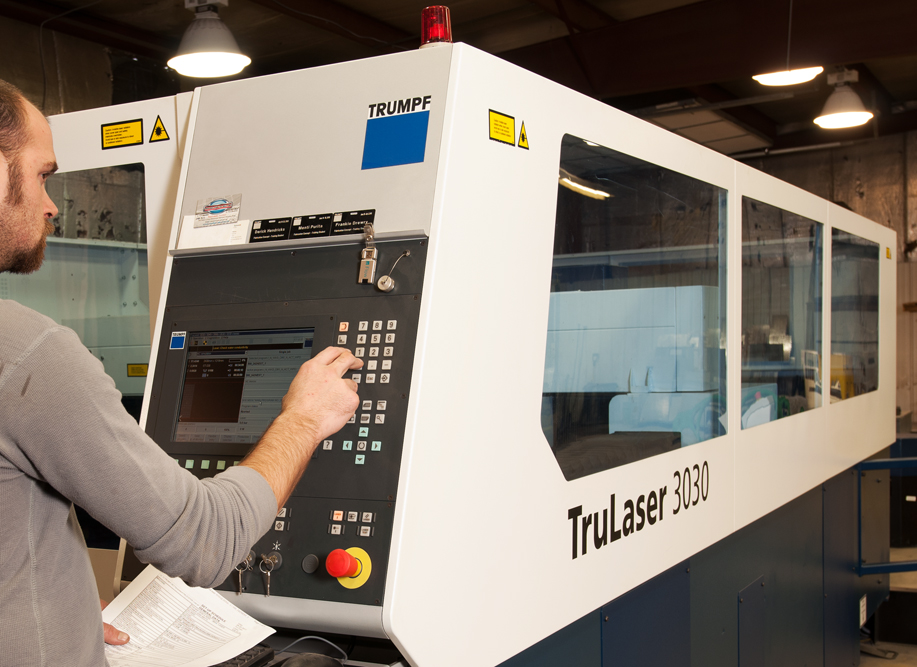

LASER CUTTING

The TruLaser Series 3030 employs the single cutting head strategy for a variety of sheet thicknesses.

Exceptionally reliable and secure processing thanks to sound mechanical engineering

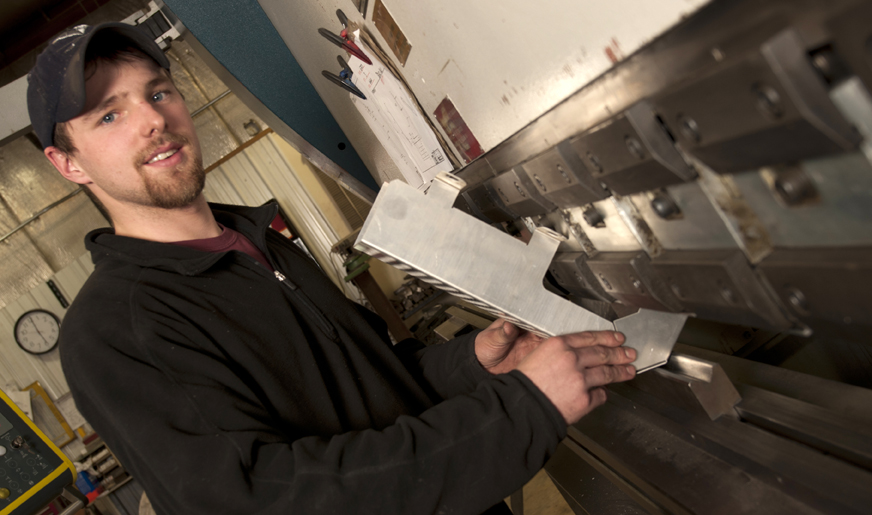

PRESS BRAKE

Precision brake capable of holding +/- .005" on flanges and +/- 1/2 deg. on bend angle in large production run.

SHEARING

US Industrial
1/4" x 10' Mild Steel
Fabrication Concepts has a US Industrial shear that is equipped with a NC control back gage. It is capable of holding tolerances within .010”. We are capable of shearing up to ¼” plate, ten feet in length.

ROLLING

Americor
1/4" x 60" Mild Steel
Americore plate roller capable of rolling 5 feet of 1/4" plate. Minimium Inside diameter of approximatly 7 inches.

PUNCHING/PLATE SHEARING

Scotchman 70/110
Maximum Punching 1-1/8” OD thru 3/4” Mild Steel
Maximum Shearing 3/8” x 24” Wide

ROLL FORMING

Ercolina Model ER763H3
Angle, Square Tube, Pipe, Channel, Solids
Please call for capabilities

FULL MACHINE SHOP CAPABILITIES

2 Axis TRAK K3 Milling Machine 9” x 49”
3 Axis TRAK K3 Milling Machine 9” x 49”
Birmingham 16”x 40” Lathe (4" Bore)
JET 13” x 40” Lathe
Solberga Floor Model Drill Press

WATERJET CUTTING
